22500L Water Tanks

22500L Water Tanks | 22,500, 22,600L (5000 Gallon) Options Available | Ample Water Storage| Custom Made from Fire Resistant Stainless Steel & Genuine Colorbond / AQUAPLATE® Material | 22500L Water Tanks Prices | Extended Warranty

Please note: not all dimension combinations are available

22500L Water Tanks BAL ratings or BASIX Requirements

With new regulations implemented after past bushfire seasons, the BAL Rating system [Bushfire Attack Level] gives guidelines for properties on Bushfire prone land. Part of these recommendations are to have a dedicated fire tank [water stored for the sole purpose of firefighting].

The tanks can be made to have the Storz fitting [NSW] or Camlock fitting [Qld] installed to meet the local council requirements for the BAL Rating, on your property.

Material Options

304 Grade Stainless Steel, 316 Marine Grade Stainless Steel, Colorbond / AQUAPLATE®

22500L Water Tanks – Ample Water Storage

Experience generous water supply with our 22500L water tanks. These tanks come in various custom sizes, including 22,500 and 22,600 litres (equivalent to 5000 gallons), providing excellent water storage options.

In bushfire-prone areas, the 22,600-litre (5000-gallon) tanks can be tailored to meet local BAL (Bushfire Attack Level) rating requirements by adding necessary fittings, such as the NSW Storz Fitting or a Camlock Fitting for Qld.

Select Water Tanks can create 22,000L water tanks (equivalent to 5000-gallon water tanks) to suit your site, with customizable fitting positions and dimensions. Contact us for tailored solutions.

All Our Steel Water Tanks Come with Three Standard Inclusions. Upon ordering your tank(s) you will be asked to place on a diagram where you want the fittings located.

  • Inlet Strainer 400 mm
  • Mosquito-proof overflow 90/100 mm
  • 25mm outlet with a tested Ball value

Water Tank Delivery

Select Water Tanks will make sure your new water tank is delivered and positioned correctly on your base. We can also assist and coordinate with a crane operator if required. We use delivery zones to provide an estimate on your delivery costs.

Estimated Water Tank Delivery Fees

What is O Size? Tanks 2.6m high or round tanks with a 3.7m diameter create an oversize load when transported on the road.

Distance Standard O Size
0-50km $180 $220

For distances further than 50km please calculate your distance from our factory below and contact us for a quote.



Need a different size?

Custom water tanks is what we do and we have thousands different sizes available to suit your requirements.

Generate Your Quote Below

Use the fields below to generate a full quote request. If you are not sure with any of these - just select “Not Sure” and we can confirm with you once we finalise your order

Colorbond / AQUAPLATE® finishes (Not available for Stainless Steel)

Choose from the following genuine Colorbond / AQUAPLATE® finishes (For Colorbond tanks only)

None Not Sure Pale Eucalypt Windspray Woodland Grey Surfmist Paperbark Monument Shale Grey Galvinised

Standard Inclusions

SWT Standard Inclusions
Our tanks come with the following Standard Inclusions:

  • 400mm inlet strainer with light guard
  • 90 or 100mm overflow with gauze end cap
  • 25mm outlet with ball valve

Choosing your fittings form

Additional Fittings

Additional fittings can be added to the tank or replace the included fittings. Some additional options:

  • Bucket Height Tap.
  • Fire Fighting connection comprising of 50mm outlet with a ball valve, and a Storz connector for NSW or a Camlock for QLD.
  • Additional inlets / overflows.

Please select any Additional fittings you require for your water tank(s) below:

Additional Outlets Stainless Steel

If you require any additional outlets for your stainless steel tank please add them below.

Additional Outlets Colorbond

If you require any additional outlets for your Colorbond tank please add them below.

Pay a deposit of 20% per item

22500L Water Tank Prices

Example prices for our most popular ranges. View all our Water Tank Prices

304 Stainless Steel Tanks

Capacity (litres) Diameter x Height (mm) Price
2,071 1300 x 1560 $1,675
3,120 1300 x 2350 $1,970
3,138 1600 x 1560 $1,775
3,324 1500 x 1880 $2,010
4,903 2000 x 1560 $2,170
5,332 1900 x 1880 $2,490
5,336 1700 x 2350 $2,245
7,814 2300 x 1880 $2,990
10,308 2900 x 1560 $3,410
10,635 2400 x 2350 $3,295
10,768 2700 x 1880 $3,515
15,015 3500 x 1560 $4,315
15,126 3200 x 1880 $4,165
15,528 2900 x 2350 $4,285
18,095 3500 x 1880 $4,555
20,108 3300 x 2350 $4,850
20,484 2900 x 3100 $5,640

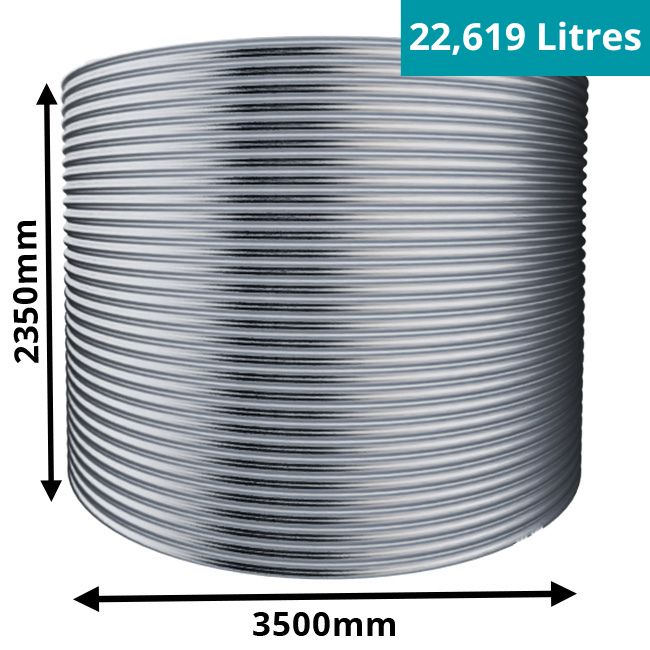

22,619 3500 x 2350 $5,105
23,407 3100 x 3100 $5,960
24,942 3200 x 3100 $6,180
25,278 3700 x 2350 $5,350
29,838 3500 x 3100 $6,840

316 Stainless Steel Tanks

Capacity (litres) Diameter x Height (mm) Price
2,071 1300 x 1560 $2,175
3,120 1300 x 2350 $2,585
3,138 1600 x 1560 $2,330
3,324 1500 x 1880 $2,515
4,903 2000 x 1560 $2,825
5,332 1900 x 1880 $3,195
5,336 1700 x 2350 $2,875
10,308 2900 x 1560 $4,435
10,635 2400 x 2350 $4,275
10,768 2700 x 1880 $4,545
15,015 3500 x 1560 $5,610
15,126 3200 x 1880 $5,395
15,528 2900 x 2350 $5,675
18,095 3500 x 1880 $5,910
20,108 3300 x 2350 $6,300
20,484 2900 x 3100 $7,640
22,619 3500 x 2350 $6,490
23,407 3100 x 3100 $7,930
24,942 3200 x 3100 $8,200
25,278 3700 x 2350 $7,100
29,838 3500 x 3100 $8,890

Colorbond / AQUAPLATE® Tanks

Capacity (litres) Diameter x Height (mm) Price
2,071 1300 x 1560 $1,350
3,120 1300 x 2350 $1,520
3,138 1600 x 1560 $1,505
3,324 1500 x 1880 $1,520
4,903 2000 x 1560 $1,730
5,332 1900 x 1880 $1,730
5,336 1700 x 2350 $1,790
7,814 2300 x 1880 $2,270
10,308 2900 x 1560 $2,625
10,635 2400 x 2350 $2,685
10,768 2700 x 1880 $2,710
15,015 3500 x 1560 $3,150
15,126 3200 x 1880 $3,490
15,528 2900 x 2350 $3,115
18,095 3500 x 1880 $3,995
20,108 3300 x 2350 $4,170
20,484 2900 x 3100 $4,535

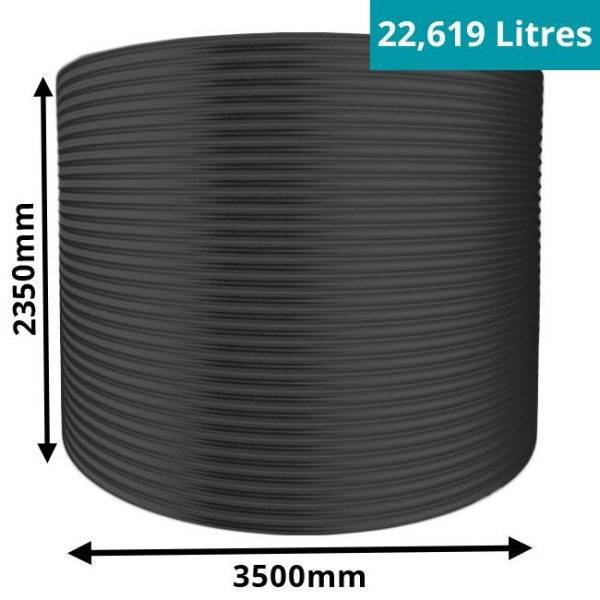

22,619 3500 x 2350 $4,445
23,407 3100 x 3100 $4,865
24,942 3200 x 3100 $4,970
25,278 3700 x 2350 $4,765
29,838 3500 x 3100 $5,385

22500l Water Tanks

Frequently Asked Questions

How big is a 22500 litre water tank?

We can build our round rainwater tanks with a capacity from as little as 190 litres to a huge 29,800 litres, with diameters from as little as 900mm to 3700mm wide, and heights from 300mm to 3100mm tall. The popular sizes for 22500l water tanks are typcially.

  • 3500mm Wide x 2350mm High
  • 3100mm Wide x 3100mm High
How long will 22500 litres of Water Last?
On Average in Australia we consume 340 litres of water per person per day.

So, 22,500 litres of water will last approximately

66.18 days for 1 person
33.09 days for 2 people
16.54 days for a family of 4
